Sonascreen® 2

Industrial Acoustic Imaging Camera for Preventive Maintenance

Sonascreen® 2
Sonascreen® 2 - Bild 2
Sonascreen® 2 - Bild 3
Sonascreen® 2 - Bild 4

Sonascreen® 2

The SONASCREEN® 2 acoustic camera enables the precise detection of sound sources in real-time and sets new standards in terms of hardware, performance and usability.

  • Reliable detection of leaks and partial discharges, even in noisy industrial environments and with larger sound sources present
  • Optimized array with 176 microphones and acoustic imaging at 100 fps for accurate results in real time

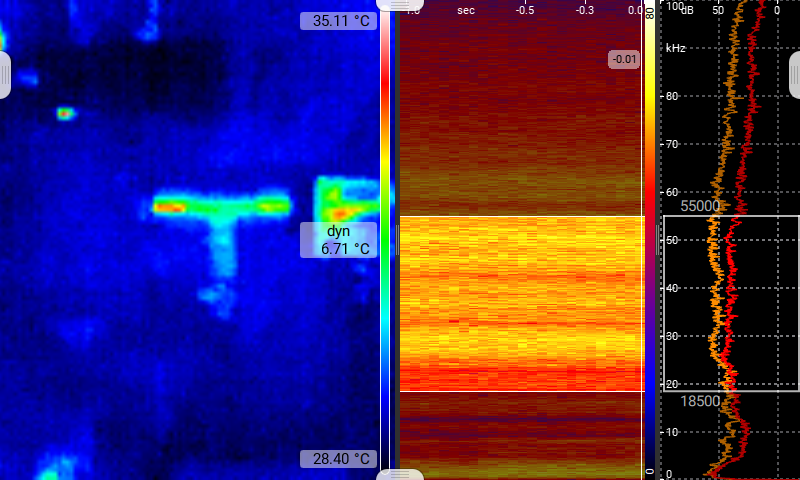

  • Built-In thermal imaging module (IR) for a more comprehensive diagnosis and analysis of recorded events


Leak Detection                Electrical Inspection

Microphones

176 sealed microphones with 200 kHz for capturing the lowest acoustic signals and precise localizing

Speed

Detection of fast-moving sound sources thanks to a high resolution of 100 fps and global shutter

Raw data

In-depth recording and analysis: The only camera that allows further processing of the recorded raw data

Ergonomic design

Handheld device – Low weight, excellent ergonomics and compact size

Wide frequency range

Wide frequency range up to 100 kHz for the detection of audible and ultrasonic signals above typical industrial noise levels

Configurable

8 configurable buttons for an intuitive workflow

Device Modes

4 different modes with preset settings for intuitive operation without extensive training



  • EASY – Simplified mode with reduced range of functions for easier operation
  • PRO – Expert mode with extended range of functions and adjustable measurement parameters
  • LEAKAGE – Optimized mode for quick and easy detection of leaks incl. live loss indicator
  • PARTIAL DISCHARGE – Optimized mode for the detection of different types of partial discharges incl. live PRPD display



Industrial grade

IP 54 / protection against water and dust: encapsulated microphones suitable for industrial use

Large screen

7” multi-touch HD display

Sonascreen® 2

The SONASCREEN® 2 acoustic camera enables the precise detection of sound sources in real-time and sets new standards in terms of hardware, performance and usability.

  • Reliable detection of leaks and partial discharges, even in noisy industrial environments and with larger sound sources present
  • Optimized array with 176 microphones and acoustic imaging at 100 fps for accurate results in real time
  • Built-In thermal imaging module (IR) for a more comprehensive diagnosis and analysis of recorded events


Leak Detection                Electrical Inspection

Microphones

176 sealed microphones with 200 kHz for capturing the lowest acoustic signals and precise localizing

Speed

Detection of fast-moving sound sources thanks to a high resolution of 100 fps and global shutter

Raw data

In-depth recording and analysis: The only camera that allows further processing of the recorded raw data

Ergonomic design

Handheld device – Low weight, excellent ergonomics and compact size

Wide frequency range

Wide frequency range up to 100 kHz for the detection of audible and ultrasonic signals above typical industrial noise levels

Configurable

8 configurable buttons for an intuitive workflow

Device Modes

4 different modes with preset settings for intuitive operation without extensive training



  • EASY – Simplified mode with reduced range of functions for easier operation
  • PRO – Expert mode with extended range of functions and adjustable measurement parameters
  • LEAKAGE – Optimized mode for quick and easy detection of leaks incl. live loss indicator
  • PARTIAL DISCHARGE – Optimized mode for the detection of different types of partial discharges incl. live PRPD display



Industrial grade

IP 54 / protection against water and dust: encapsulated microphones suitable for industrial use

Large screen

7” multi-touch HD display

Acoustic Camera

Our acoustic camera uses beamforming to localize sound sources and visualizes complex acoustic information in color as an acoustic photo or acoustic video. Thanks to the intuitive handling as well as preset setups (e.g. for leak detection), even inexperienced users can correctly evaluate the results at a glance.

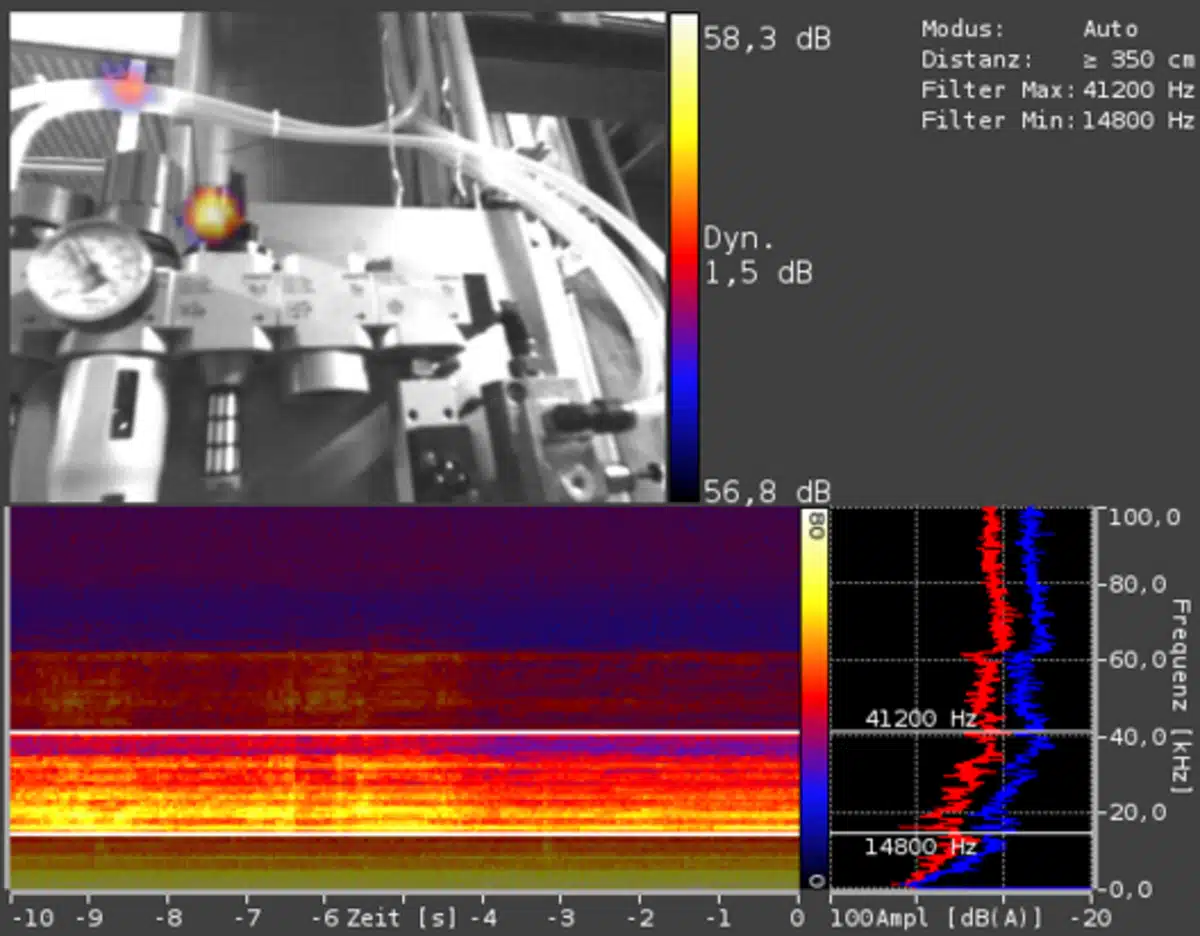

Application – Ultrasonic Leak Detection

  • Broadband ultrasound
  • Visualization of leakages in a spectrogram
  • Adjustable bandpass filter and dynamic range
  • Filters out interfering sound or ultrasound in industrial environments
  • Display of multiple leakages in one image
  • Reporting: Software for leak detection audits
  • Allows gross loss estimation
  • Free software for leakage loss assessment and report generation in EXCEL and PDF

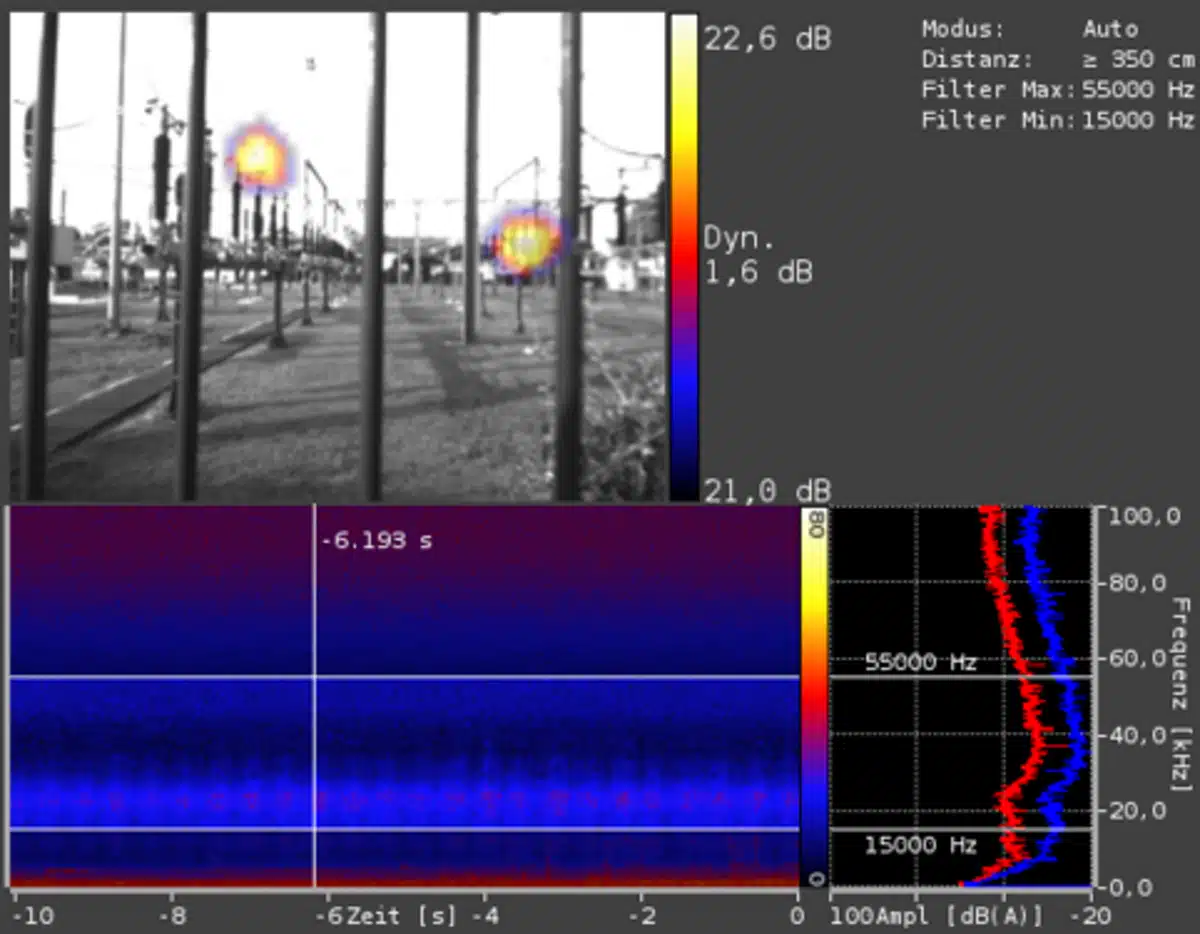

Partial Discharge Detection with Ultrasound

  • Detect partial discharges in the ultrasonic range at the earliest stage
  • Helps you to ensure the reliability and safety of equipment
  • Recognize typical characteristics of partial discharges in the spectrogram
  • Display multiple partial discharges in one image
  • Free software for evaluation of electrical partial discharges and report generation in EXCEL and PDF

Datasheet (PDF)
Manual (PDF)
Quick start guide (PDF)
