Sonaphone

Digital Ultrasonic Testing Device for Preventive Maintenance

In the age of Industry 4.0 the optimizing processes, increasing operational safety, and improving energy efficiency are becoming more and more significant. Meet the challenges of Maintenance 4.0 with the new SONAPHONE from SONOTEC. The digital ultrasonic testing device combines innovative sensors and software for preventive maintenance that can be operated intuitively and paves the way for new processes for new applications.

Sonaphone

Digital Ultrasonic Testing Device for Preventive Maintenance

In the age of Industry 4.0 the optimizing processes, increasing operational safety, and improving energy efficiency are becoming more and more significant. Meet the challenges of Maintenance 4.0 with the new SONAPHONE from SONOTEC. The digital ultrasonic testing device combines innovative sensors and software for preventive maintenance that can be operated intuitively and paves the way for new processes for new applications.

Offert

Beskrivning

Advantages at a Glance

  • Intuitive Web and App Concept
  • Optional modular PC software platform for Measurement point organization | Route planning Trend analysis | documentation
  • Bundle important information about the measuring point
  • Broadband ultrasound analysis
  • Test reports with just a few clicks
  • 5-inch display with multi-touchscreen
  • Realizing Maintenance 4.0

Applications

With the new SONAPHONE you can

  • Detect and classify leaks in compressed air, gas and vacuum systems and reduce your energy costs
  • Monitor the condition of your machines and determine the optimal maintenance time
  • Identify leaks in windows, doors, vehicles, components and containers and ensure compliance with specified quality requirements
  • Find electrical partial discharges and insulation damage and increase your operational safety
  • Assess the function of steam traps and prevent energy and steam loss and damage to the steam system

Broadband ultrasonic analysis

  • Frequency range from 20 to 100 kHz

Software that is intuitive to operate

  • Apps accompany you through the entire testing process; from planning, testing and documentation to analysis
  • SONAPHONE can be operated intuitively like a tablet via 5-inch display with multi-touchscreen
  • Reduce Paper records, which are error-prone and above all time-consuming

Bundling relevant information

  • Apps bundle all information relevant to maintenance – always have an overview of the condition of your machines and systems
  • Record spectrograms, time signals, sound files and levels
  • Add photos, text comments and voice memos

Dokument

Brochure (PDF)
Operating Manual (PDF)

Relaterade produkter

  • Sonaphone T & Sonosphere

    The mobile ultrasonic transmitter SONAPHONE T is used for the quick and reliable detection of leaks in windows, doors, cabins, vehicles and containers that have sealing surfaces or profile rubber seals. In connection with an ultrasonic testing device from the SONAPHONE series, efficient tightness testing is possible with very little effort. The simple functional principle does not require extensive training of personnel, nor does it entail any follow-up costs.

    Läs mer

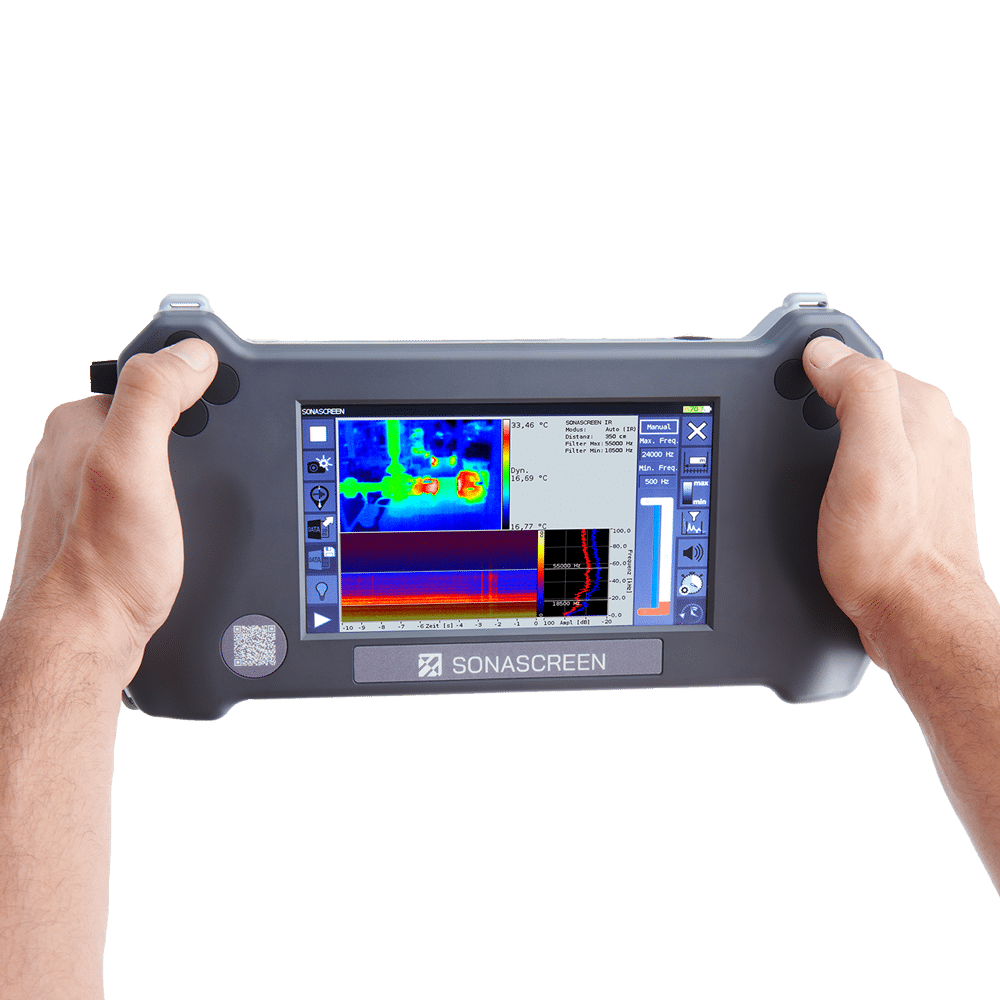

  • Sonascreen® IR

    Experience the world first: The SONASCREEN® IR combines the well-known features of the acoustic camera with a thermal imaging mode. It makes the most diverse sound sources audible and visible with an added thermal image for identifying damages or faults. With the SONASCREEN® IR acoustic camera, a wide variety of sound sources from the audible and ultrasonic range can be easily and quickly detected and visualized.

    In addition, the SONASCREEN® also converts the inaudible ultrasound into an audible signal, which the user can hear via industrial headphones.

    Make ultrasound audible and visible!


    Leak Detection                Electrical Inspection

    Features

    • 72 sealed microphones (spiral array) for use in industrial areas
    • Real-time acoustic results at 100 fps
    • Wide frequency range (2 kHz – 100 kHz) for the detection of audible sound and ultrasound
    • Acoustic feedback via industrial headphones
    • Handheld device with IP54 protection (splashproof)
    • 8 configurable buttons for fast control
    • Low weight and small size
    • Integrated data acquisition and analysis software
    • Handheld device with IP54 protection
    • Integrated LED lights
    • 8 configurable buttons for fast control
    • Low weight and small size
    • IR resolution 160 x 120 Pixel

    Läs mer

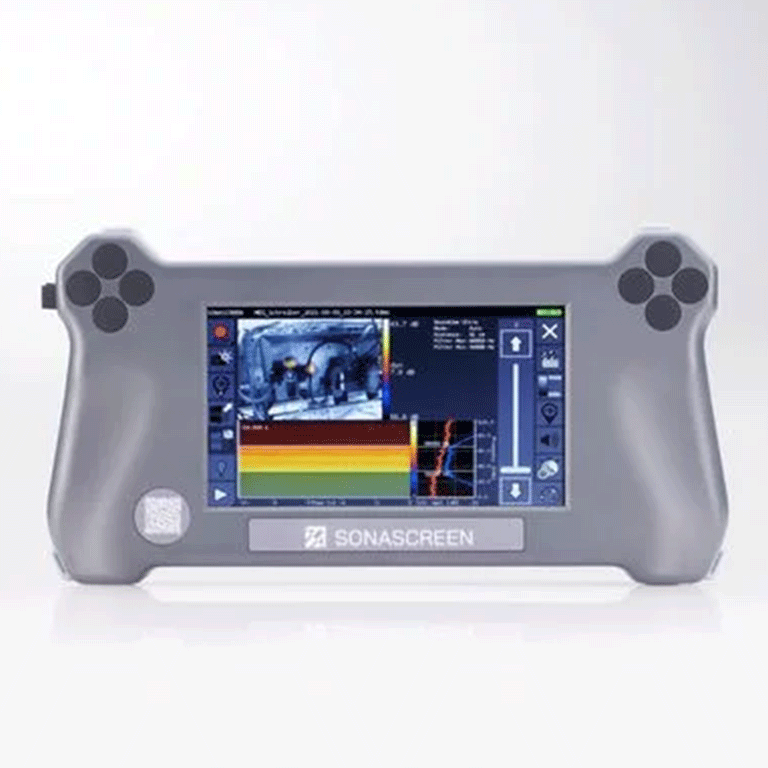

  • Sonascreen®

    The handheld acoustic camera SONASCREEN generates acoustic images from both the audible and ultrasound frequency range. The device locates sound sources in real-time and displays the results immediately on the screen. Furthermore, the camera provides audible feedback through industrial headphones.

    Make ultrasound audible and visible!


    Leak Detection                Electrical Inspection

    Features

    • 72 sealed microphones (spiral array) for use in industrial areas
    • Real-time acoustic results at 100 fps
    • Wide frequency range (2 kHz – 100 kHz) for the detection of audible sound and ultrasound
    • Acoustic feedback via industrial headphones
    • Handheld device with IP54 protection (splashproof)
    • 8 configurable buttons for fast control
    • Low weight and small size
    • Integrated data acquisition and analysis software
    • Handheld device with IP54 protection
    • Integrated LED lights
    • 8 configurable buttons for fast control
    • Low weight and small size
