MEAX MT30
Machine Tool Calibration
MEAX MT30

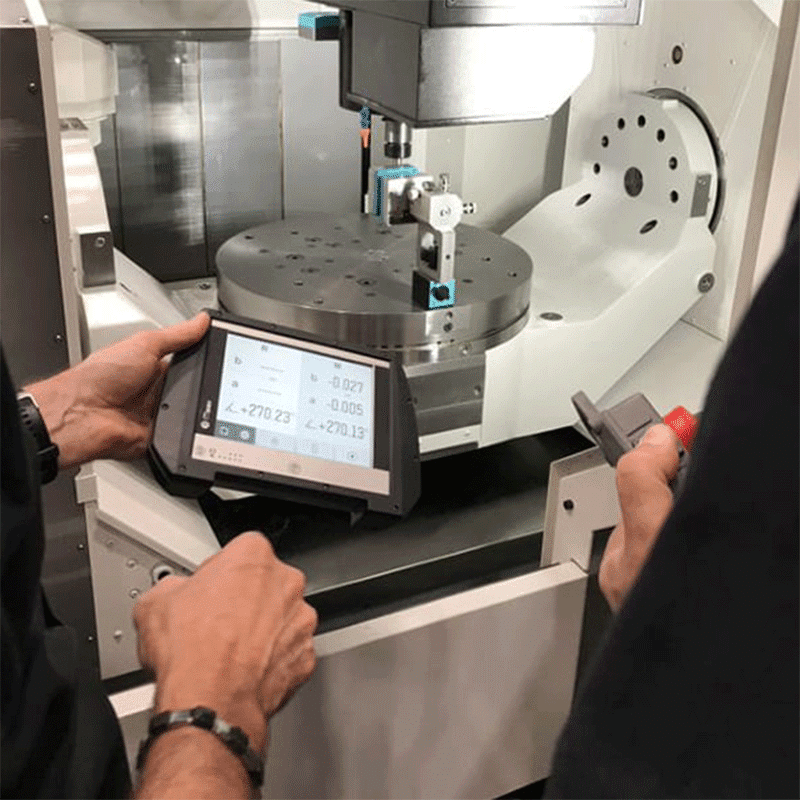

Meax MT30 contains five measuring sensors that are all connected wirelessly to the display unit in which all measurement results are calculated and presented immediately to the user. The results of the measurements are presented both graphically and numerically for a simple assessment and can be stored in the memory on the display unit.
A measurement report with all measurements in a machine can be created in PDF format directly in the display unit, or the results can be exported using a USB stick for further documentation.

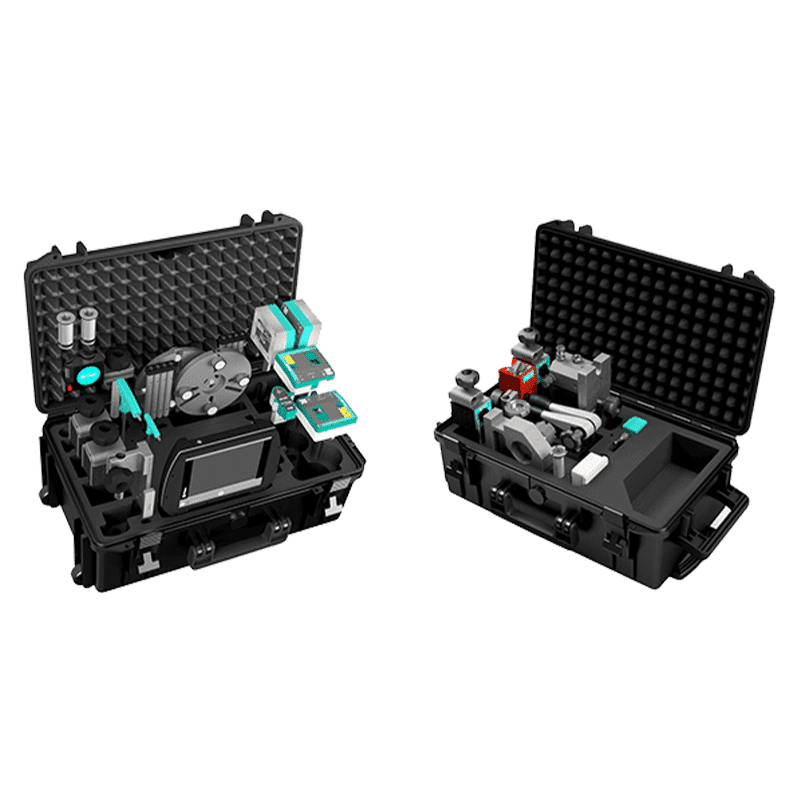

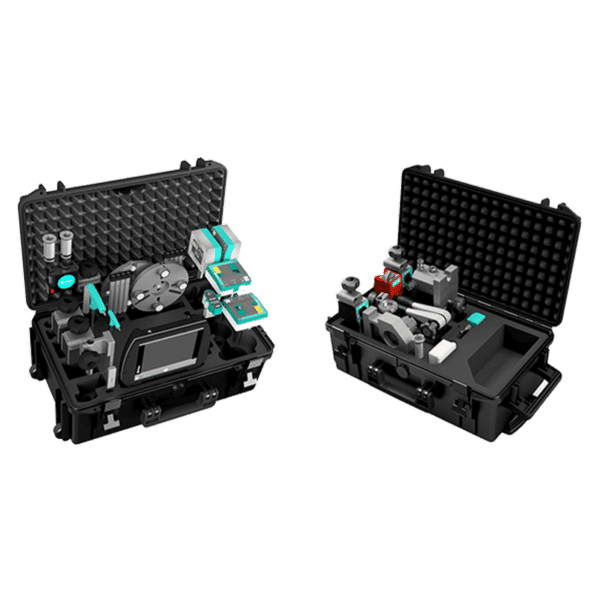

The measuring sensors in the Meax system are precision instruments specially designed to provide high accuracy in a challenging measurement environment. Meax MT30 comes in two robust trolley cases that make it convenient to transport and carry the entire system.
MEAX MT30
Meax MT30 contains five measuring sensors that are all connected wirelessly to the display unit in which all measurement results are calculated and presented immediately to the user. The results of the measurements are presented both graphically and numerically for a simple assessment and can be stored in the memory on the display unit.
A measurement report with all measurements in a machine can be created in PDF format directly in the display unit, or the results can be exported using a USB stick for further documentation.
The measuring sensors in the Meax system are precision instruments specially designed to provide high accuracy in a challenging measurement environment. Meax MT30 comes in two robust trolley cases that make it convenient to transport and carry the entire system.
Beskrivning
Meax® DU – Display Unit
Meax DU is a robust display unit that has been specifically designed for use in a workshop environment where there are high demands on reliability and resistance to both cutting fluids and dirt.
The display box has a strong aluminium frame and a rubber coated surface that makes it extremely shock resistant while rendering it easy to hold and means it can be put down on the machines without it sliding away.

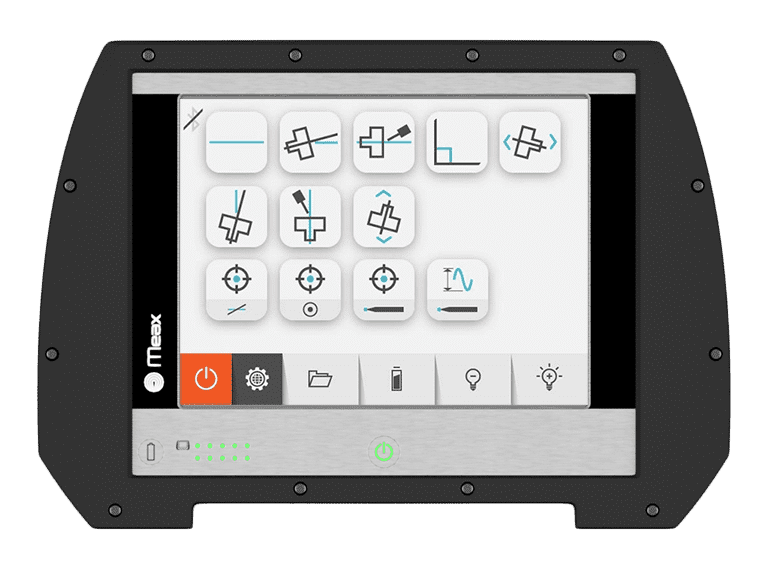

A large, clear 6.5” colour touch screen that makes it easy for users to see and provides the option of viewing what is displayed on screen even at a long distance. All this to allow for a flexible use of the system even in a tough environment.
Meax® SM/SR – Measuring sensors
MEAX® SR201 and SM201 serve as multifunctional sensors.

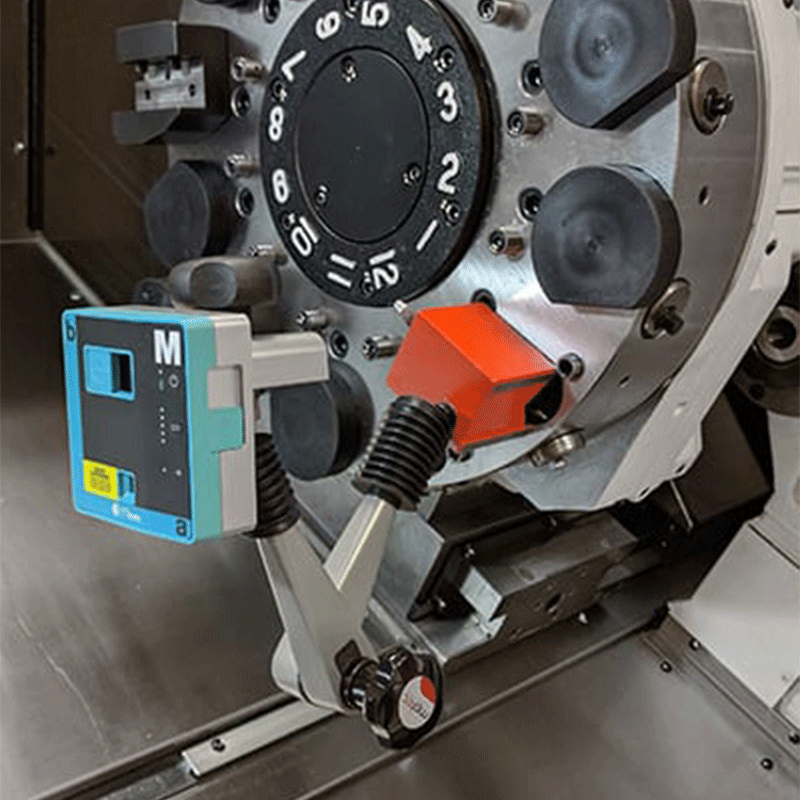

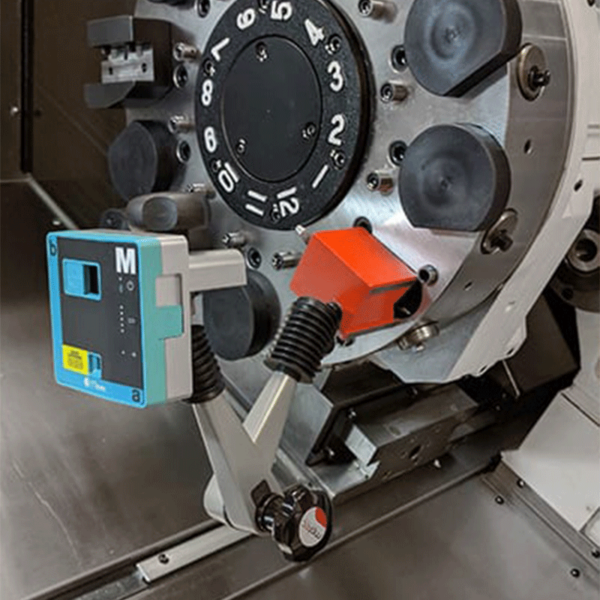

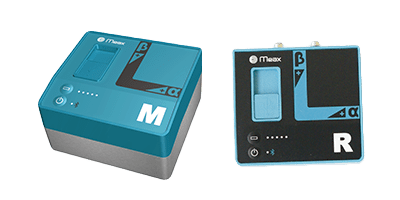

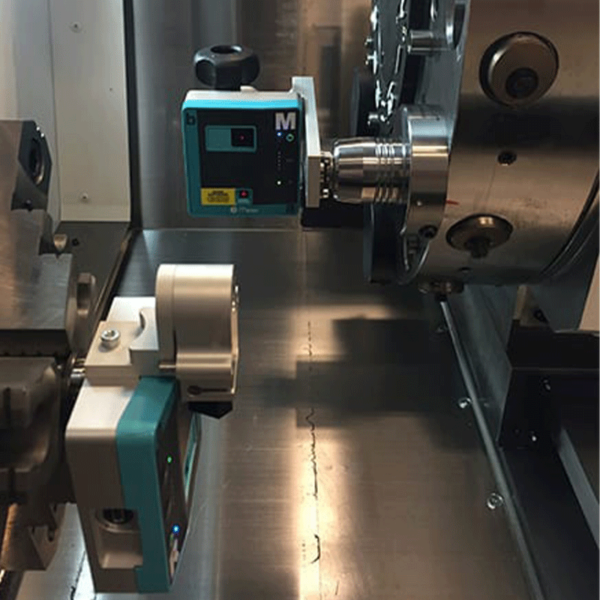

They both have an integrated laser transmitter, a 2-axis PSD detector and a high-resolution inclinometer to record the angle of rotation. The sensors are used for a variety of types of measurements such as straightness, squareness, spindle direction, and coaxiality.The SR unit (marked R) is fitted to the part of the machine which forms a reference, and the SM sensor (marked M) is fitted to the machine axis that is to be measured.
MEAX® LM/LR – Angle sensors
MEAX® MT30 contains two twin axis measuring sensors for accurate angular measurement. Meax angle sensors have a unique design with wireless communication via Bluetooth and a rechargeable battery. It allows use of the machine even if the machine doors are closed, which is a prerequisite for working safely in the machine. Wireless communication also allows the option for the operator to bring the display unit to the location where the alignment is to be made when setting up the machine.
Meax® Pen
Meax Pen is a battery-powered measuring pen that connects wirelessly via Bluetooth to the Meax display unit or to a mobile device using an App. The measuring sensor can be used for operations like the measurement of machine spindles, movements/gaps in machine slides, measurement of repetition accuracy in fixtures or turning gaps in machine movements. The wireless transmission enables the sensor to be mounted in the machine where you can perform the measurements with the machine doors closed.
MEAX® SQ201 – Angle prism

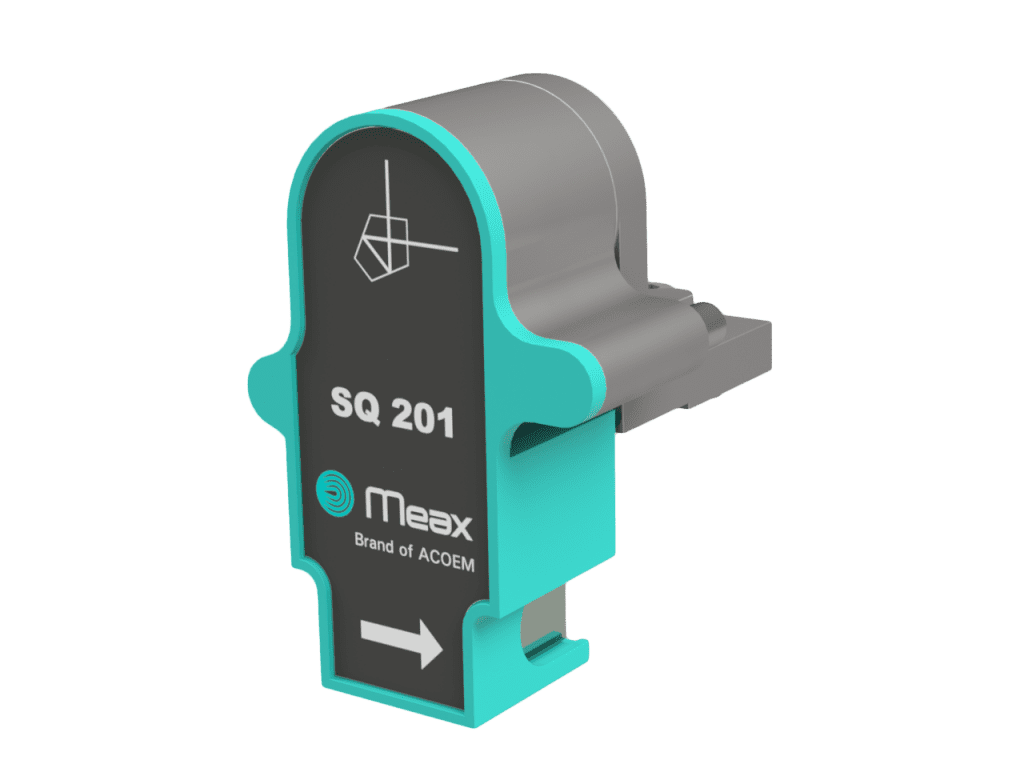

When measuring squareness, use the SQ201 angle prism that is fitted to the SR sensor and angles the output laser beam at 90° with an accuracy within 0.005 mm/m. The angle prism has a built-in mechanical device that allows you to alter the direction of the laser beam at any time during the measurement process with a simple manual operation. As the SQ201 has small installation dimensions, this means that it can be installed in machines where there are short distances and where you want to maximise the distances between the measurement points. Its light weight minimises the risk of sag.
Ytterligare information
| MEAX SM/SL | Housing material: Anodized Aluminum and ABS plastic |
|---|---|
| MEAX LM/LR | Operating Temp: 15 to 30°C ( 59 to 86°F) |
| Display unit | Weight: 1,2 kg (2,6 lbs) with battery |
