Meax® Level Dual
Unique 2-axis high precision inclination sensor for machine leveling
Meax® Level Dual
Meax® Level is a unique 2-axis high precision inclination sensor with a large measuring range (± 100 mm/m) with same accuracy (± 5 µm/m).
Each measurement sensor measures angular deviations from the horizontal plane in 2 axes with a wide measurement range (± 100 mm/m), high accuracy, and a resolution down to 0.001 mm/m. The LM201 sensor is labeled ”M” and is typically mounted on the part of the machine that moves along the machine axis to be measured. The other sensor, LR201 labeled ”R,” is placed on a reference surface on the machine frame and measures if the entire machine moves when displacement occurs along any of the machine’s axes. The angular sensors have built-in rechargeable batteries that provide up to 12 hours of operation.

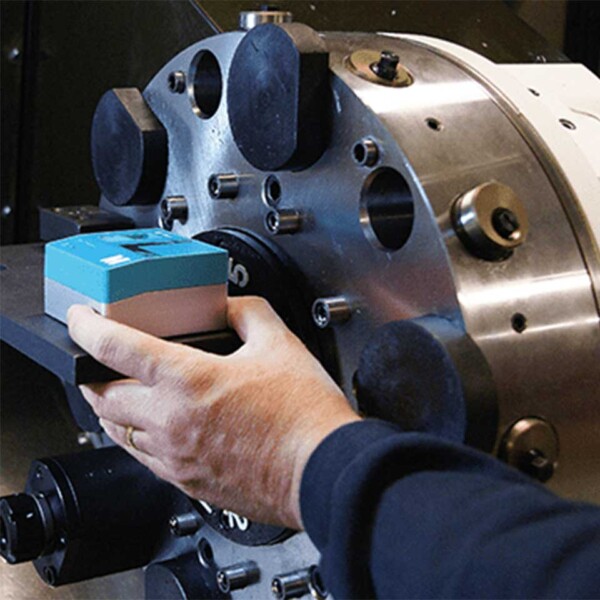

These measurement sensors can be used for leveling machines or machine components during installation. Another application example is vertical spindle alignment, where the LM sensor is mounted in a vertical spindle, and the LM sensor is placed on the worktable or a rotating table. By zeroing, rotating the spindle and table 180 degrees, and then halving the value, you can easily measure if the spindle is perpendicular to the table.
Meax® Level Dual
Meax® Level is a unique 2-axis high precision inclination sensor with a large measuring range (± 100 mm/m) with same accuracy (± 5 µm/m).
Each measurement sensor measures angular deviations from the horizontal plane in 2 axes with a wide measurement range (± 100 mm/m), high accuracy, and a resolution down to 0.001 mm/m. The LM201 sensor is labeled ”M” and is typically mounted on the part of the machine that moves along the machine axis to be measured. The other sensor, LR201 labeled ”R,” is placed on a reference surface on the machine frame and measures if the entire machine moves when displacement occurs along any of the machine’s axes. The angular sensors have built-in rechargeable batteries that provide up to 12 hours of operation.
These measurement sensors can be used for leveling machines or machine components during installation. Another application example is vertical spindle alignment, where the LM sensor is mounted in a vertical spindle, and the LM sensor is placed on the worktable or a rotating table. By zeroing, rotating the spindle and table 180 degrees, and then halving the value, you can easily measure if the spindle is perpendicular to the table.
Beskrivning
The 2-axis level sensor
The future of machine tool leveling measurement is here. MEAX Level has brought together new technology that generates accuracy down to 0,001 mm/m with a user interface in smartphones and tablets. Within five minutes, MEAX Level will enable you to determine whether the machine is in level and is receiving data concerning roll/pitch in the machine’s movement. Thanks to a wireless connection to the smartphone or tablet, MEAX Level reads two angles in the same measurement.
Logical interface

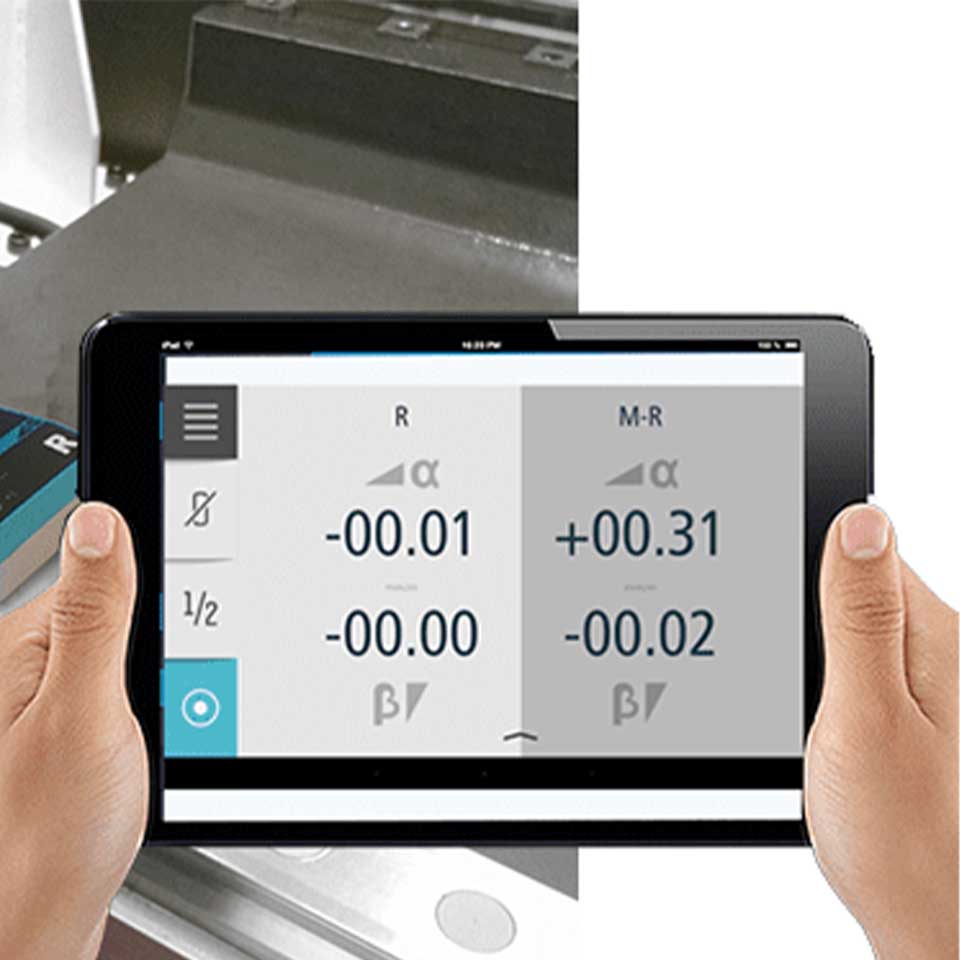

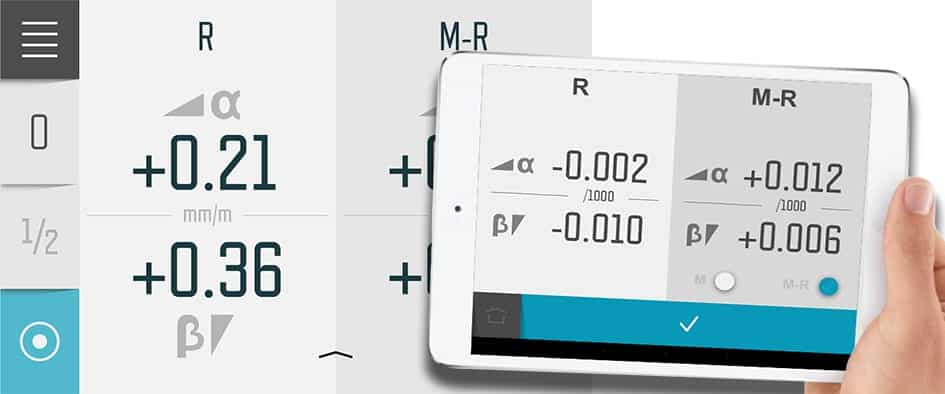

MEAX Level is equipped with Bluetooth, which you use to connect to your mobile unit (iOS or Android). This is easily achieved by the user-friendly MEAX Level App. It displays the angle deviation down to a resolution of 0,001 mm/m. The results are saved on your device and can be shared in any way you wish from your file handling system, through e-mail, etc.
Industrial use
- Both level sensors come fitted with batteries sufficient for 12 hours of continuous operation.
- Each sensor includes a battery indicator which displays the battery status without activating the sensors or tablet.
- The design and color are customized to be easily seen in an industrial environment.
- MEAX Level is also IP65-classed, giving a significant level of protection against liquids and dust.
