AT-200

Smart shaft alignment for smart maintenance

AT-200

A complete shaft alignment solution! With the AT-200 alignment tool, ACOEM takes alignment into the Industry 4.0 world of performing maintenance!

Connectivity, mobile devices, and apps are integrated into the AT-200 making it a tool for short response time between machine failures and corrective actions. The smart sensors use CCD technology for superior measurement performance and precision alignment.



AT-200

A complete shaft alignment solution! With the AT-200 alignment tool, ACOEM takes alignment into the Industry 4.0 world of performing maintenance!

Connectivity, mobile devices, and apps are integrated into the AT-200 making it a tool for short response time between machine failures and corrective actions. The smart sensors use CCD technology for superior measurement performance and precision alignment.



Offert

Beskrivning

GuideU™

The AT-200 is a smart, app-based alignment tool with the patented, adaptive user interface, GuideU, that lends the tool an industry-leading ease-of-use.

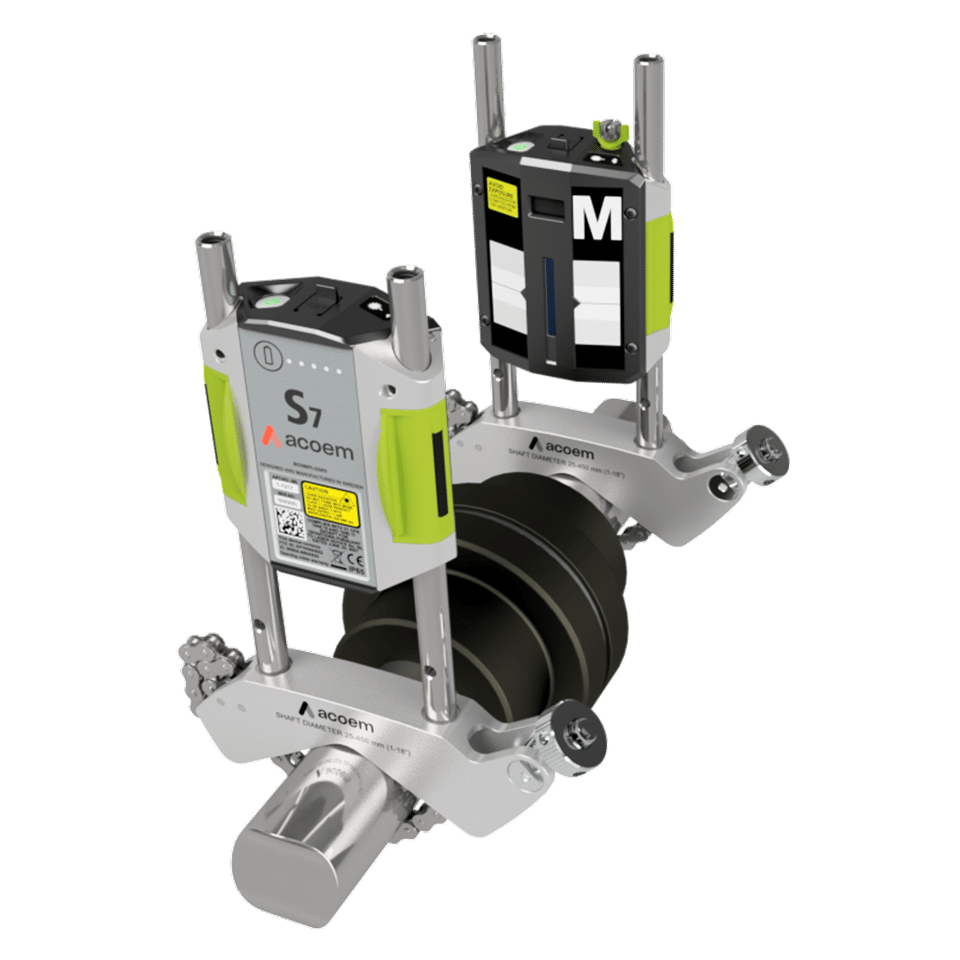

True live with smart sensors

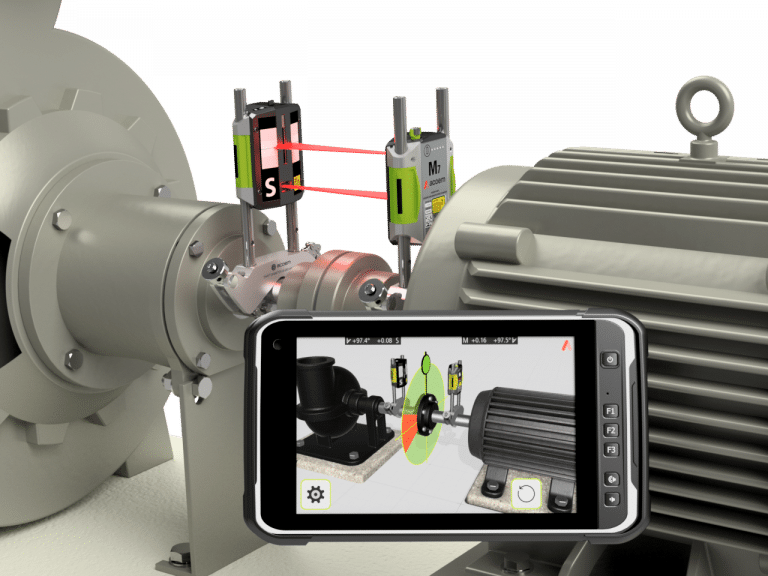

No doubts, no guessing games, thanks to the industry-first use of technologies of two smart sensors with visible laser beams and inclinometers monitoring both shaft positions simultaneously.

Did you interrupt the laser beam? Or move the machine’s position out of the detector range? Not a problem, our smart sensors will resume with an updated machine position and always deliver live values to you.

Smart alignment sensor features

  • Large 30 mm digital sensor detectors – capacity to handle long measurement distances and large angular misalignment errors
  • The 30 mm digital sensor detector combined with a line laser will eliminate rough alignment which results in short setup time
  • Thinnest smart sensors on the market
  • Built-in dual inclinometers to detect backlash and to obtain angular values during measurement in the horizontal alignment program
  • Integrated Bluetooth for wireless communication between the display unit and smart sensors
  • Digital signal processing – less sensitive to ambient light, improved side spot rejection and edge detection
  • Sunlight-resistant detectors
  • Instant battery check, in both on and off mode
  • IP65-certified sensor design that can withstand harsh environments
  • Premounted fixtures and small sensors provide for quick setup also on machines with limited space

More smart AT-200 features

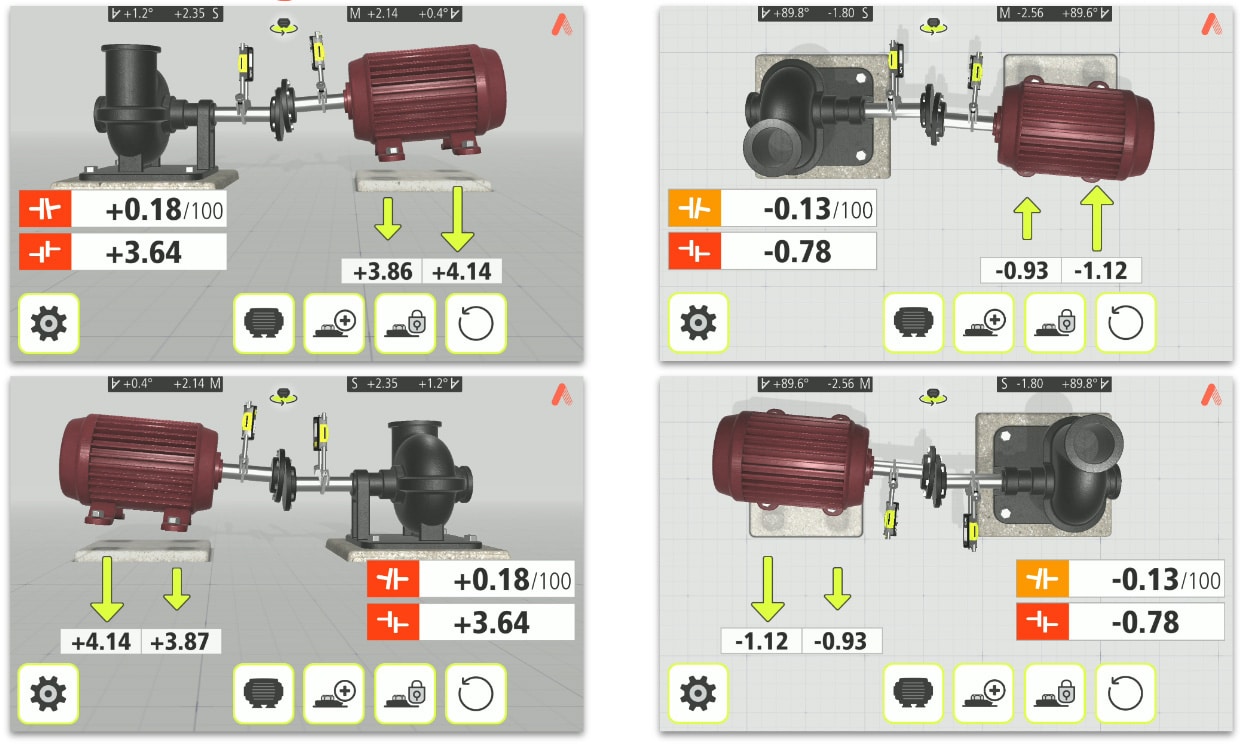

Feetlock
This function allows you to select which feet are locked and which feet are adjustable. Feet Lock is available both in shimming and alignment.


Target Values
Pre-set target values used in your alignment work when you have to compensate for the machine’s thermal expansion.


PDF report
The PDF report function provides a fast on-site reporting available for converting saved measurement reports into PDF files.

Dokument

Brochure (PDF)
Technical Datasheet (PDF)

Ladda ner appen

Relaterade produkter

  • NXA Ultimate

    With the NXA Ultimate you have covered any kind of angle that needs to be covered of your machinery. It includes shaft alignment applications as well as geometric applications, hence, as the name says, it is an ultimate measurement tool.

    Läs mer

  • RT-300

    On-the-spot machine diagnostics with a complete precision shaft alignment tool and a cloud connection to save reports and look up historical data, all combined into one tool — the RT-300 is a truly unique reliability tool for the Industry 4.0 mechanic!

    Powered by the suite of intuitive applications offered by Acoem, this tool does it all: shaft alignment, vibration analysis, spot inspections on bearings, and safe and reliable measurement with the unique probe for of all pre-alignment checks.

    A complete precision shaft alignment tool, on-the-spot machine diagnostics, and a cloud connection for storing reports and reviewing historical data, all combined into one tool, the RT-300 is a unique tool for Industry 4.0 mechanics.

    Läs mer

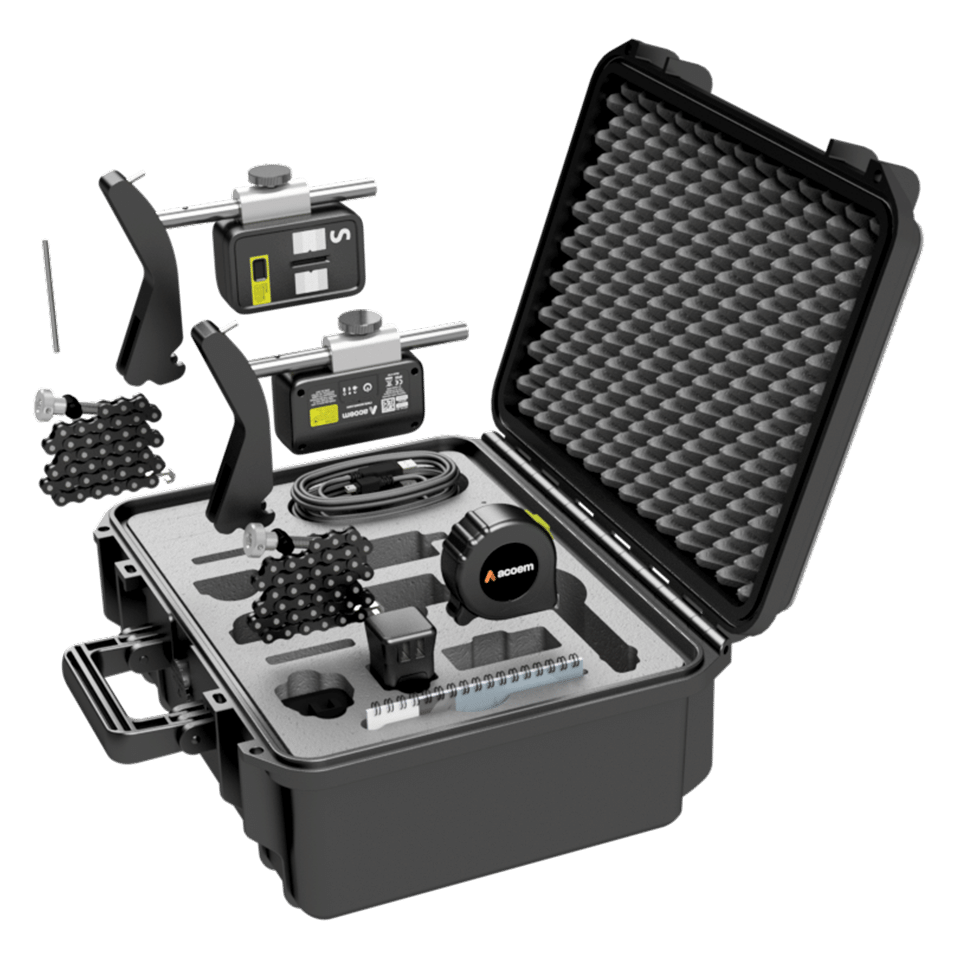

  • AT-100
